Professional Jack Sockets
¼″ S1CM Metal Nose Jack Sockets
The Cliff™ ¼″ (6.35 mm) stereo jack socket has a metal nose and is designed to receive both mono and stereo ¼″ jack plugs.
It is supplied fitted with a plated, ferrous EMI / RFI screen including a pin for direct connection to the PCB. A metal nut and washer is provided, (not pre-fitted to save assembly time).
It has kinked PCB legs for easy board assembly.
The body is moulded molded from a tough, flame-resistant thermoplastic.
Contacts are a brass alloy, silver plated for long life, and self cleaning for superior performance and reliability.
The thread at the front is made from a durable die-cast zinc alloy and is nickel plated.

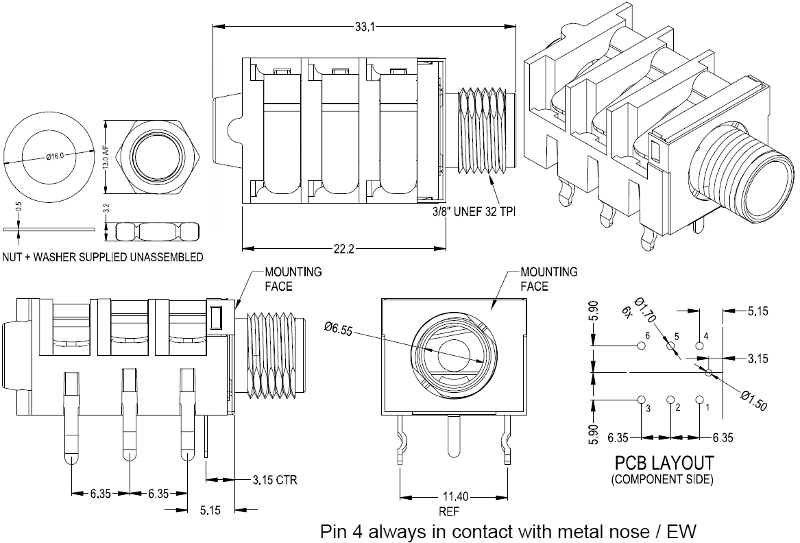

See the PDF data sheet: ¼″ S1CM PCB Mounting Jack Socket with Metal Front Thread (opens in a new window).
FCR11650EW Stereo version with 3 contacts BBB as standard.
FCR11655EW Mono version with contacts BNB.
Technical Data
- Electrical:
- Withstand voltage : 2000 V DC minimum.
- Maximum current: 5 A.
- Nominal contact resistance: < 50 mΩ.
- Materials:
- Housing: PBT (UL 94 V-0 ).
- Contacts: Cliff™ silver-plated brass alloy.
- Mechanical:
- Operating temperature: -10 to +70 °C.
- Solderability: 95% coverage (minimum).
- Test temperature: 230°C (+/- 10°C).
- Test time: 3 seconds (+/- 0.5 seconds).
- Insertion force: < 5 N.
- Removal force: > 10 N.
