Metal XLR Right Angle Multi Position Plugs

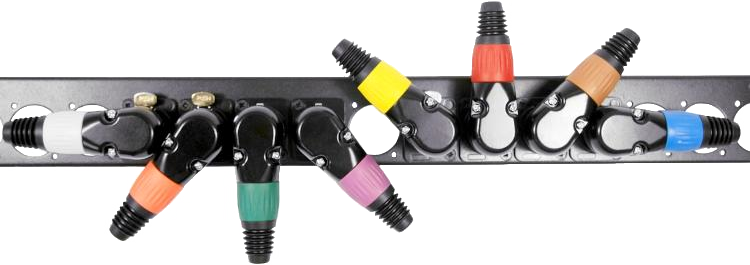

Right angle multi position (RAMP) metal XLR plugs are available as either male 3, 4 and 5 pole or female 3 and 5 pole versions. The body is adjustable in 8 positions around the plug to allow cable access from any direction. They are supplied with a strain relief and black grommet but the grommet can be replaced with one of various coloured colored versions which are sold separately.
Electrical Performance
- Contact resistance: ≤ 3 mΩ.
- Insulation resistance: > 10 GΩ.
- Dielectric strength: 1.5 kV DC.
- Rated voltage: < 50 V.
- Rated current per pin: 15 A (3 pin), 10A (4 pin), 7.5A (5 pin).
Mechanical Performance
- Insertion force: ≤ 30 N.
- Withdrawal force: ≤ 30 N.
- Lifetime: ≥ 1000 mating cycles.
- Cable outer diameter: 3.5 to 8 mm.
Please see the PDF data sheet for technical specifications.
Metal XLR Right Angle Multi Position Plugs (opens in a new window).
Male Plugs
-
FC619303 3 pole male RAMP XLR metal plug.
-
FC619304 4 pole male RAMP XLR metal plug.
-
FC619305 5 pole male RAMP XLR metal plug.
Female Plugs

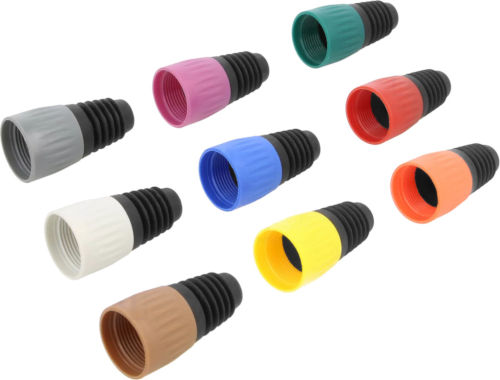

Strain relief with coloured colored grommets
- FC619200 9 colour color grommet multi pack.
- FC619203 White.
- FC619204 GreyGray.
- FC619205 Green.
- FC619206 Yellow.
- FC619207 Red.
- FC619208 Blue.
- FC619209 Brown.
- FC619210 Orange.
- FC619223 Violet.
