Professional Jack Sockets
¼″ S1K Sealed Mini Jack Sockets
Professional music equipment uses high power components that need to be cooled by fans. Fans draw in dust and pollutants which can adversely affect the contacts of conventional jacks with exposed contacts.
Our S1K avoids the possibility of contact contamination by means of a sealing cover over the top and bottom of the jack. The height profile and PCB fitting are the same as our standard S1 jack sockets.
The S1K is available with switched mono (BNB) or stereo (BBB) configurations and different types of front bush. Order as: S1K[A to E] BNB (mono) or BBB (stereo). Other contact configurations can be made subject to quantity.
All models except type E are supplied with a plastic nut and washer.
100 per tray or 1000 per carton.
Specification
- Withstand Voltage: 2000 V DC minimum.
- Maximum Current: 5 A.
- Temperature Rating: −10 to +70 °C.
- Life: > 10000 operations.
- Contact Resistance: < 100 mΩ.
- Initial Contact Resistance: < 50 mΩ.
- Ingress Protection Rating, (with plug in): IP50.
- RoHS / REACH compliant.
See the PDF data sheet: ¼″ S1K Sealed Mini PCB Mounting Jack Sockets (opens in a new window).
-

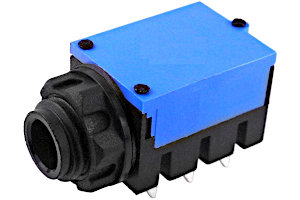

S1KA Standard, fully threaded for plastic or metal nut.
FC67810 S1KA/BBB/WNW stereo sealed jack socket - standard.
FC67815 S1KA/BNB/WNW mono sealed jack socket - standard.
May be supplied coloured colored or black, depending on production run.
-
S1KB SPN - Partially reduced nose. Nuts are not usually used but are supplied.
FC67820 S1KB/BBB/WNW/SPN stereo sealed jack socket.
FC67825 S1KB/BNB/WNW/SPN mono sealed jack socket. .
-
S1KC Full thread with discrete bright insert and isolated EMI / RFI washer.
FC67830 S1KC/BBB/NI/WN/IEW stereo sealed jack socket.
FC67835 S1KC/BNB/NI/WN/IEW mono sealed jack socket.
-
S1KD Full thread with prominent bright insert. EMI / RFI washer connected to inserted jack plug.
FC67840 S1KD/BBB/NI/WN/CEW stereo sealed jack socket.
FC67845 S1KD/BNB/NI/WN/CEW mono sealed jack socket.
-
S1KE Non thread bush. Nuts not used.
FC67850 S1KE/BBB/NNW stereo sealed jack socket - plain.
FC67855 S1KE/BNB/NNW mono sealed jack socket - plain.
Hole Plug Retained hole plug for front. Shown attached to a black socket.
FC67858
